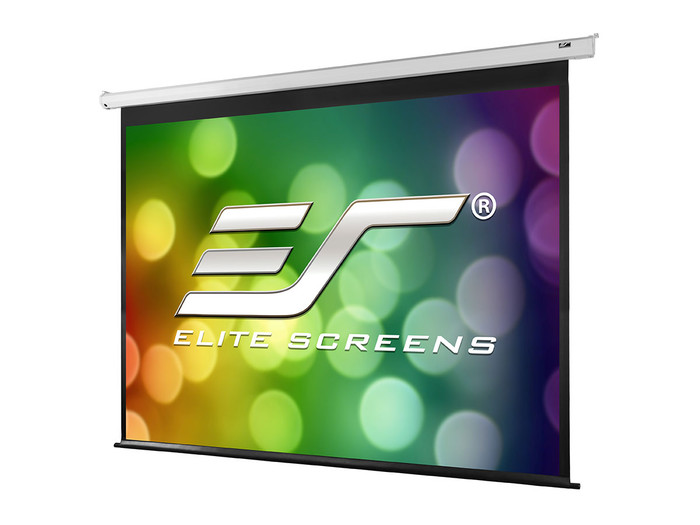

Elite Screens Electric Screen VMAX92UWH2: Store Pick-up Only:
- SKU:
- ELITE-VMAX92UWH2
- Availability:
- ONLY available for STORE PICK-UP! Not shippable!
- Shipping:
- Calculated at Checkout
Description
Elite Screens Electric Screen VMAX92UWH2: Store Pick-up Only - Discontinued Closeout:
Only 2 screens available at this price!
View Size (H X W) 45.1” X 80.2”
Package Size (L X W X H) 95.67” X 5.91” X 5.51” – 26 lbs.
Screen Material:
- MaxWhite 1.1 Gain black backed material
- MaxWhite Fiber Glass backed 1.1 Gain material, models 166″ & below
- 180° wide viewing angle
- 4K Ultra HD, Active 3D, and HDR Ready
- Not compatible with Ultra/Short-throw Projectors
- Standard 4-side black masking borders
- Matte White material is durable and easy to clean
- Available in the following range of diagonal sizes:
- 170″ in 1:1 format
- 120″ in 4:3 format
Design and Installation
- Durable metal casing for wall/ceiling installation
- Includes wood screws and drywall anchors
- Bubble leveler included
- Fully assembled with 3-prong power connection ready to plug & play
Control System
- Standard Infrared (IR) and Radio Frequency (RF) remote controls
- Detachable 3-way wall switch
- Radio Frequency (RF) remote capable of operating from up to 100 feet away without the necessity of line of sight
- Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector’s power cycle
- Low-voltage internal IR/RF receivers
- CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger / IR “eye” receiver / 3-way wall switch
Quality and Reliability
- Synchronous motor allows silent operation with extended operational longevity and low power consumption
- MaxWhite® FiberGlass: Flame Retardant- Complies with NFPA 701 Standards
- Conforms to ANSI/UL STD. 60950-1
- Certified to CAN/CSA STD. C22.2
- 2-year limited warranty
- Lifetime Tech Support by Elite Screens Professional Service Team
Product Description / Key Features
From the manufacturer and retail sites, the VMAX92UWH2 has the following characteristics:
(Note: U = “white case” / “white finish,” WH = “white” screen surface; the model is part of the VMAX2 series.)
Feature | Details |
---|---|
Diagonal size / Aspect ratio | 92″ diagonal, 16:9 aspect ratio. |
Viewing area | Approx. 80″ wide × 45-1/8″ high for the visible image (i.e. without borders) |
Gain | 1.1 gain matte white surface (MaxWhite) — good reflectivity and a wide viewing angle |
Screen material | Matte white vinyl (MaxWhite) with layers: a blackback to prevent light penetration, a textured centre, and optical coating. Washable, flame-retardant surfaces. |
Casing / Mounting | Metal case, suitable for wall or ceiling mounting. Ships assembled and largely plug-and-play. Includes mounting hardware and accessories. |
Control / Operation | Comes with both IR (infrared) & RF (radio frequency) wireless remotes; also includes a wall box (wired) for remote buttons + IR receiver; a wired IR sensor for recessed mounting; built-in 12-volt trigger support (for automatic lowering/raising when projector is powered on/off). |
Case dimensions | Case: ~ 93-1/16″ W × 4-3/16″ H × 3-13/16″ D (case size with screen retracted) |
Borders / Masking | Black masking borders: approx 2″ sides, ~3-1/4″ bottom, top border (how much depends on how far the screen is lowered). Some variation depending on model |
Warranty / Support | 2-year warranty. Lifetime tech support from Elite Screens. |
